Description:
- Can use for Water heaters, credit card machines, water vending machine, flow measurement device.

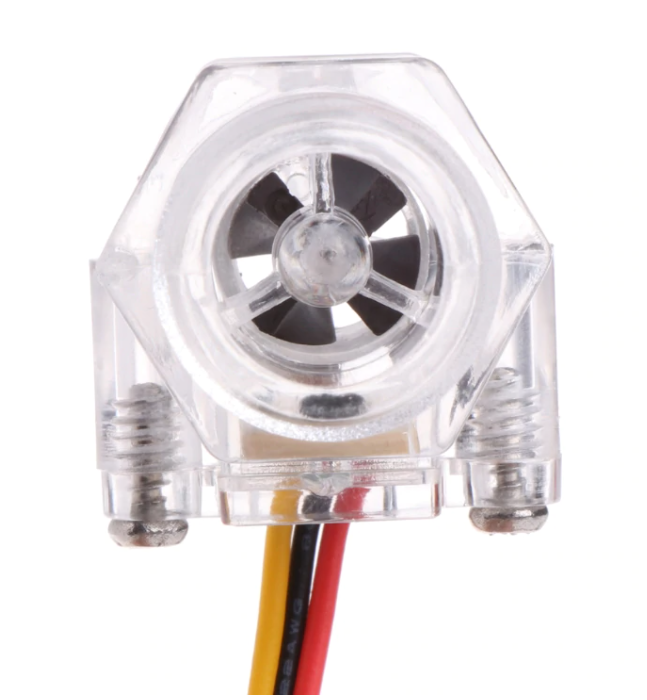

- Inlaid with stainless steel impeller shaft.
- Seal Ring with the upper and lower force structure never leaks.
- Mounted vertically, should not exceed 5 degrees inclination.
- Temperature of Medium should not exceed 120°.
Specification:
- Material: Plastic / monocrystalline
- Color: Transparent
- Working voltage: DC 5~15V
- Maximum operating current: 15 mA (DC 5V).
- Working voltage range: DC 5~15 v.
- Load capacity: ≤ 10 mA (DC 5V).
- Work temperature: ≤ 80°C
- Work humidity range: 35%~90%RH (no frost)
- Allowing pressure: pressure 1.75Mpa
- Storage temperature: -25~+80 ° c
- Save humidity: 25%-95%RH
- Flow Range: 1-30L/min
- Insulation resistance:> 100MΩ
- Accuracy (in 1 ~ 30L MIN): ± 10%
- Flow pulse characteristics (5xQ): Q = L / Min ± 3%
- Output pulse duty cycle: 50% ± 10%
- External threads: Approx. 1/2″
- Interface Type:1/2″(1/2″ Tubing)
- Dimension:54 x 29mm/2.13 x 1.14″(L x W)
